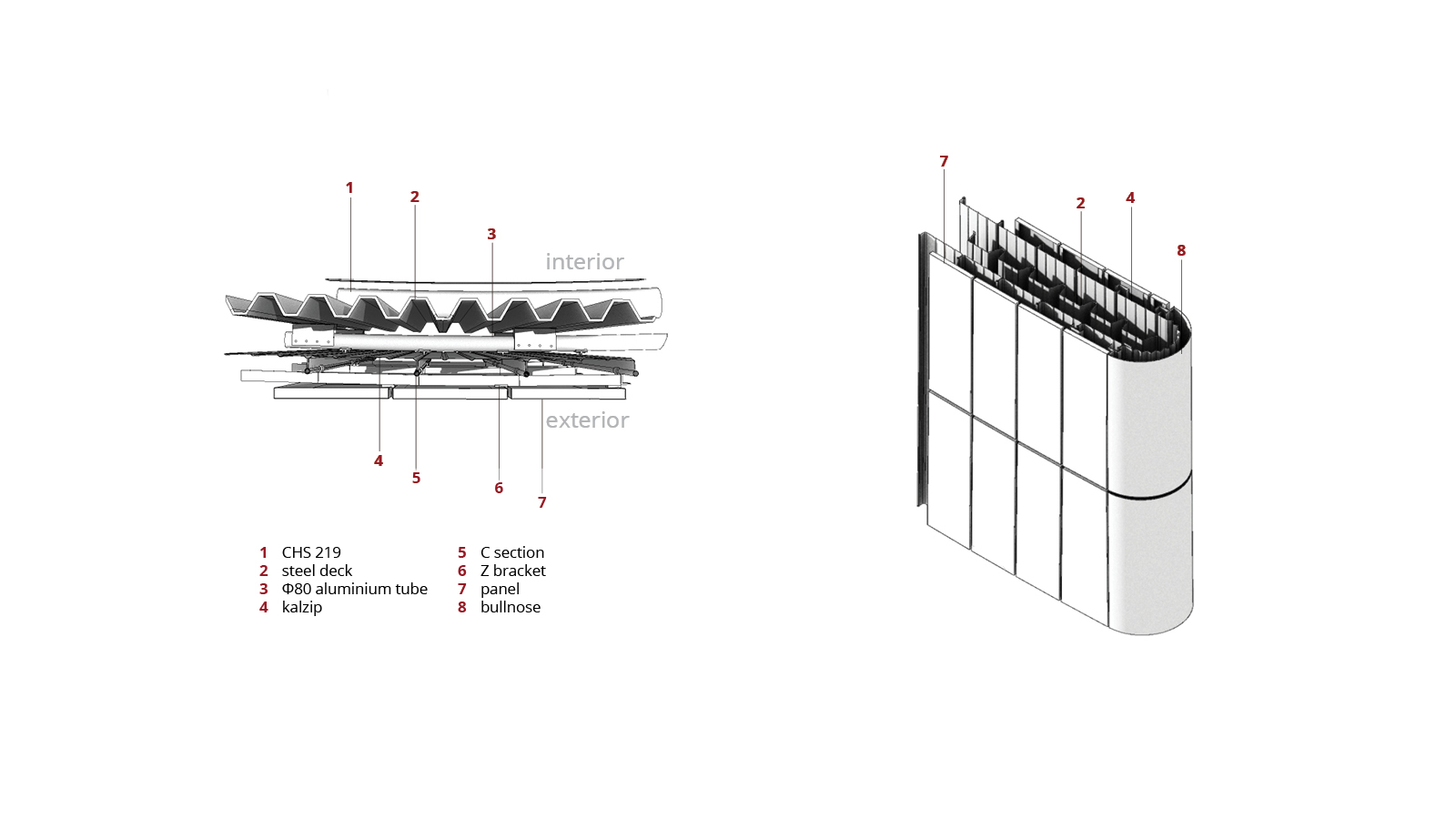

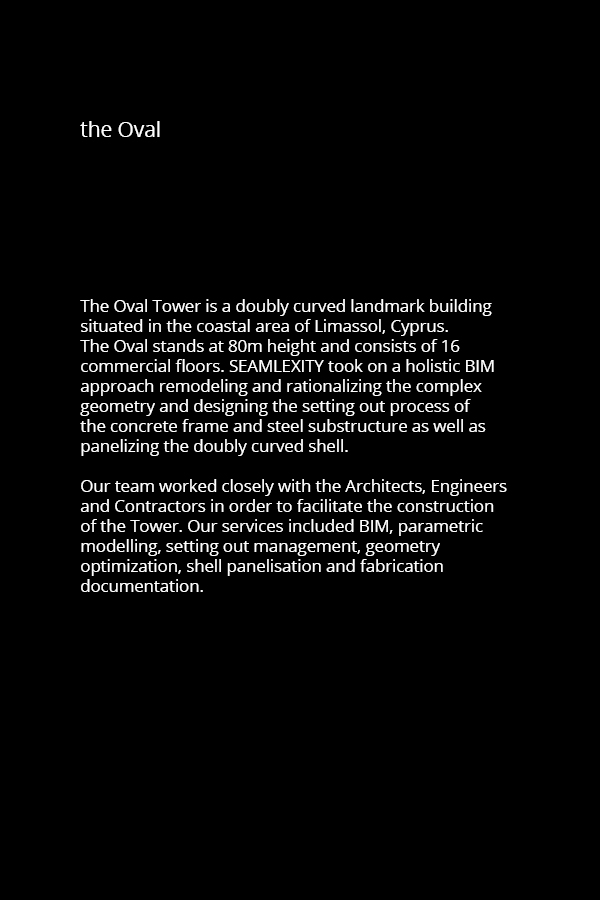

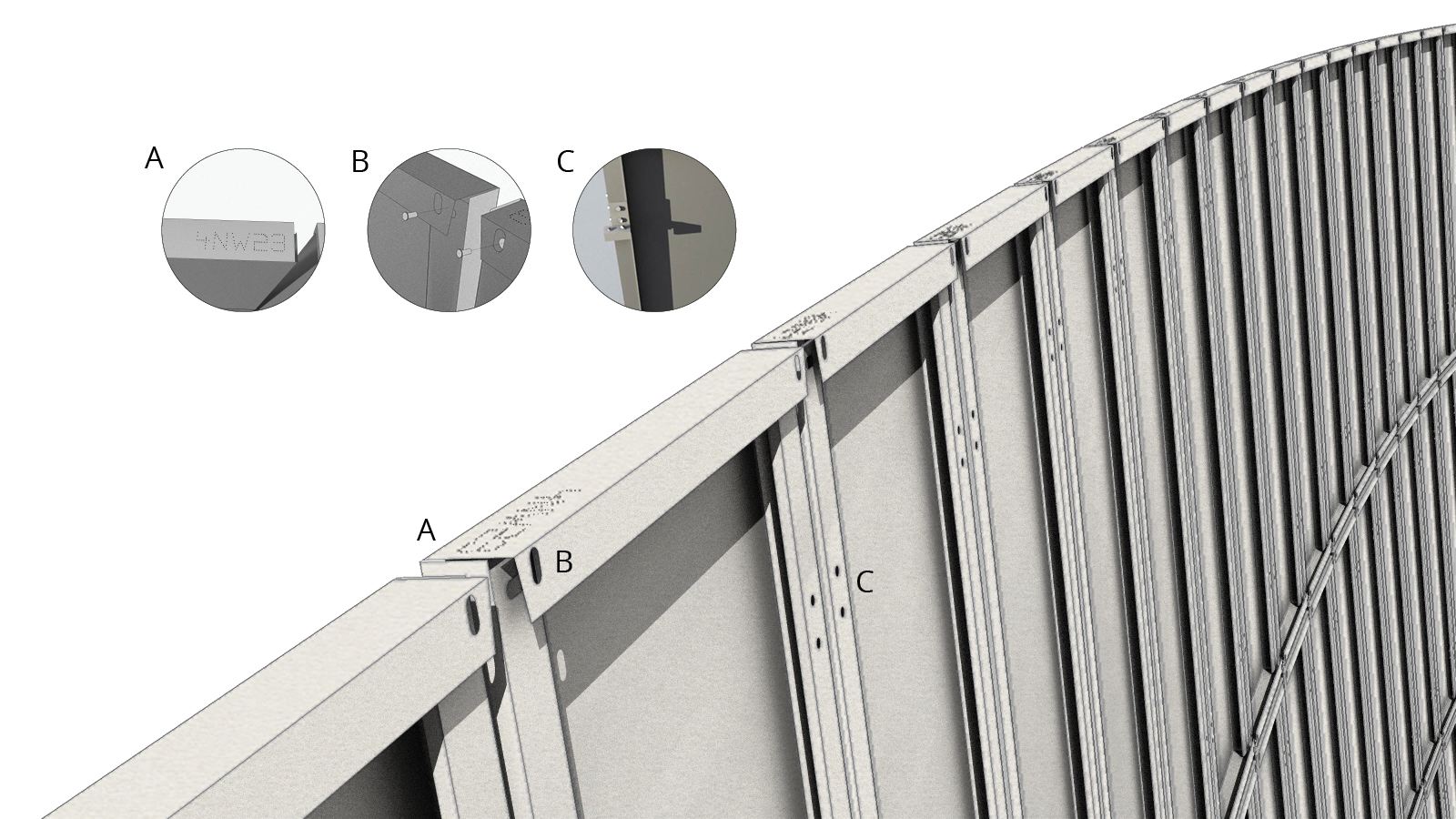

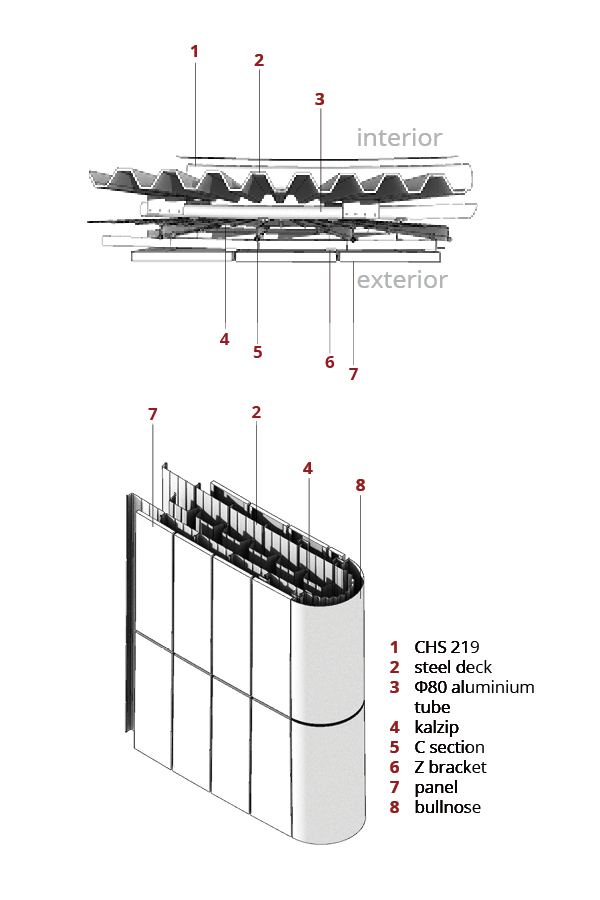

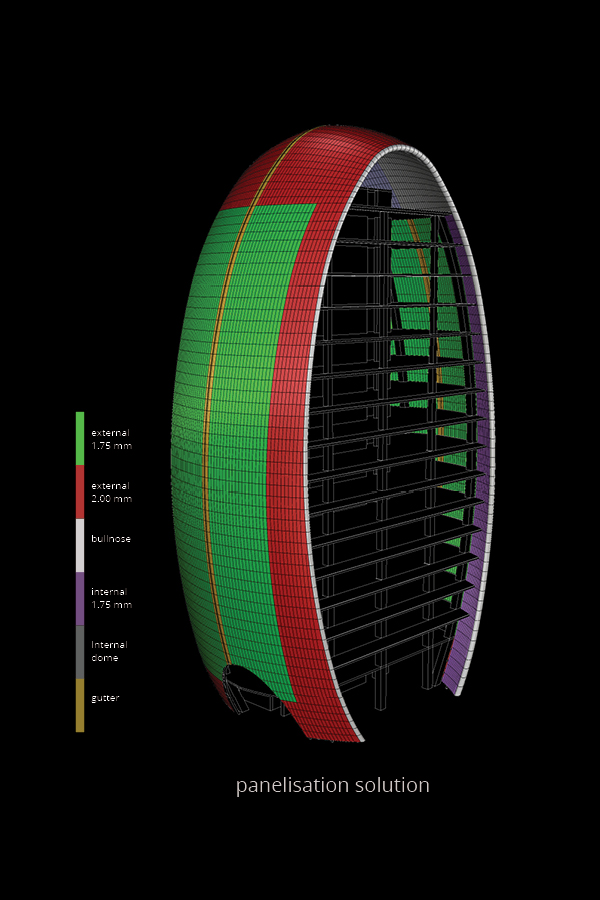

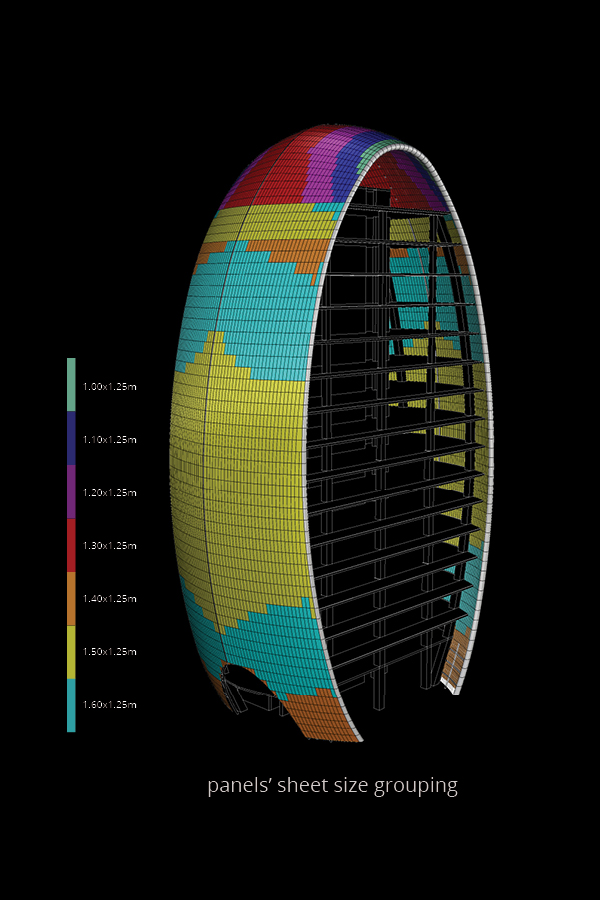

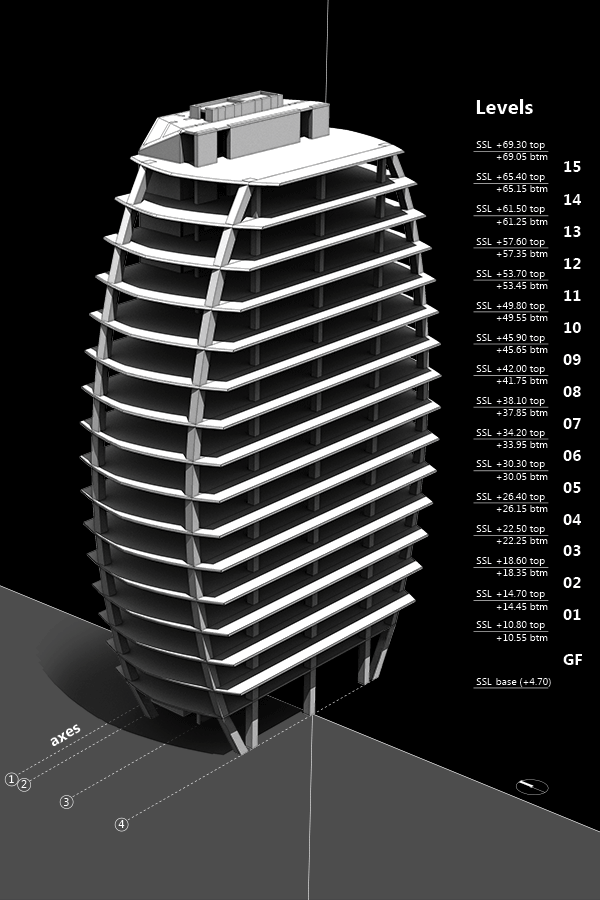

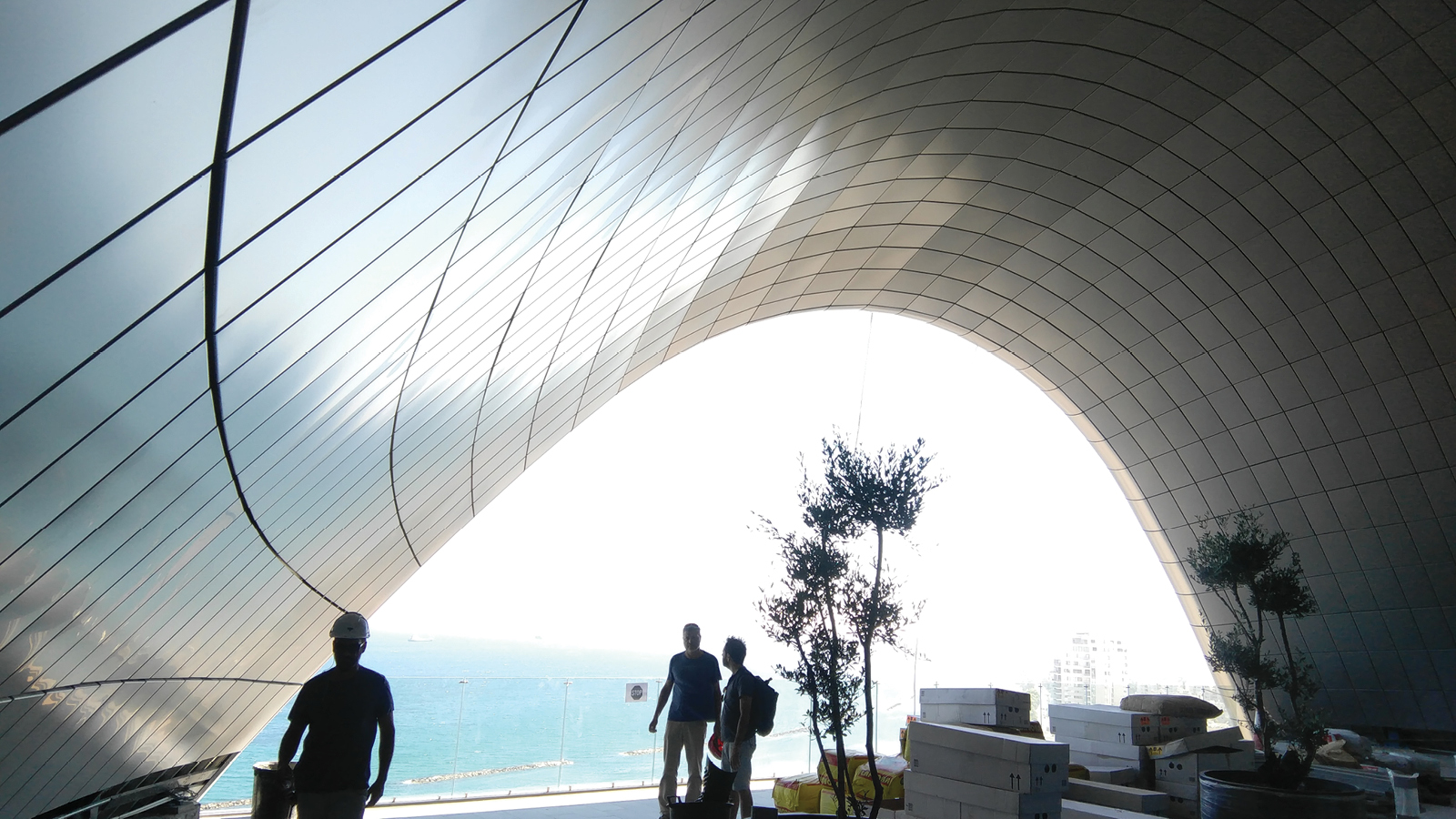

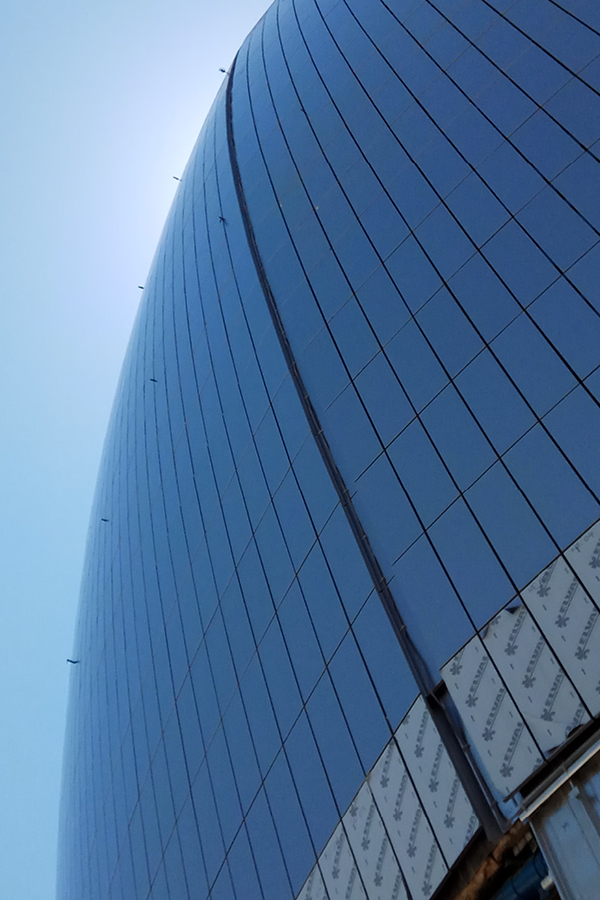

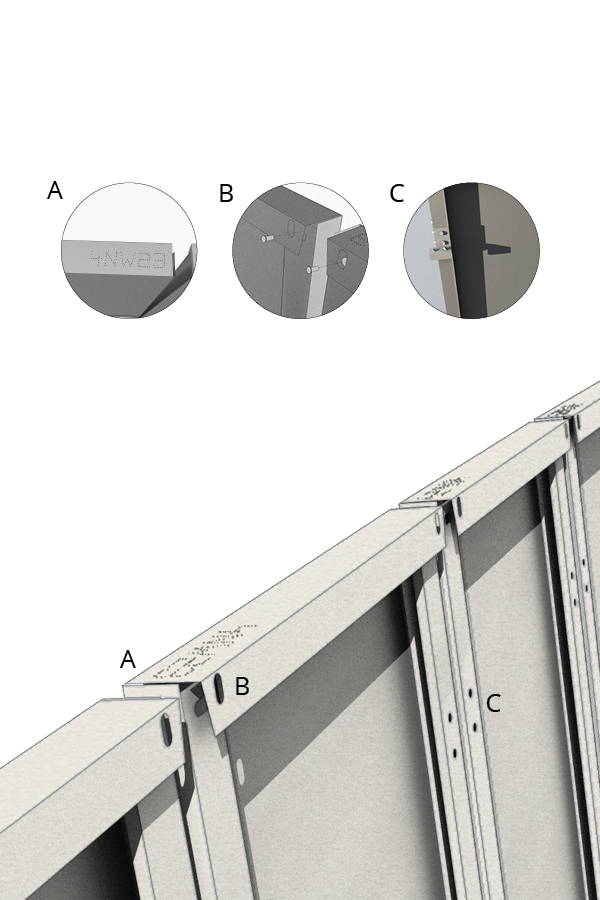

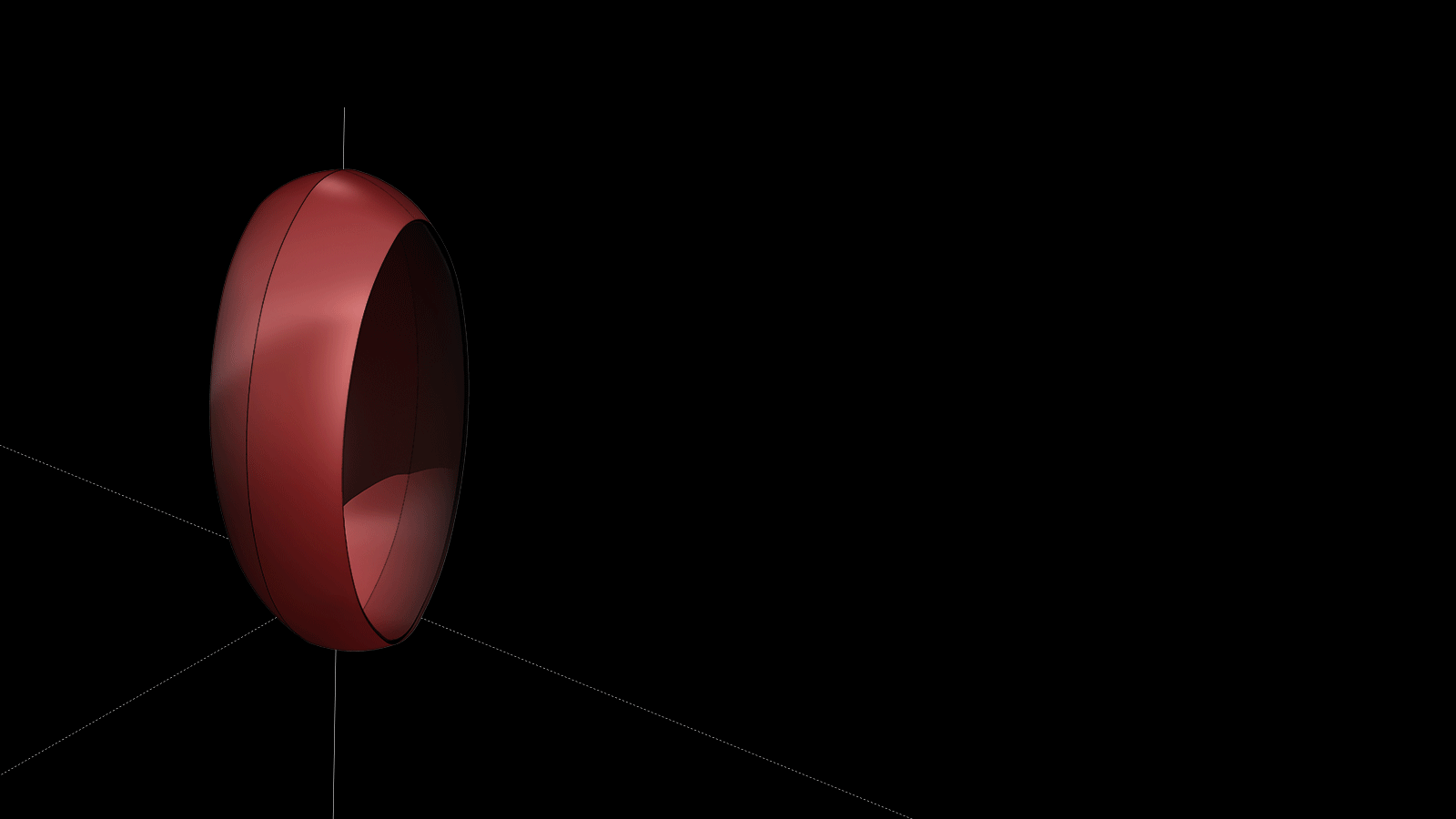

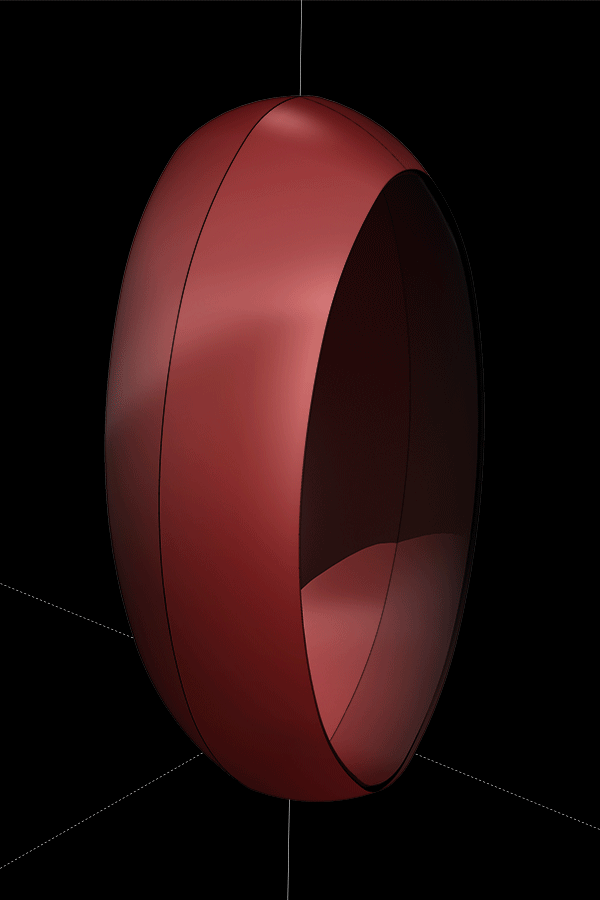

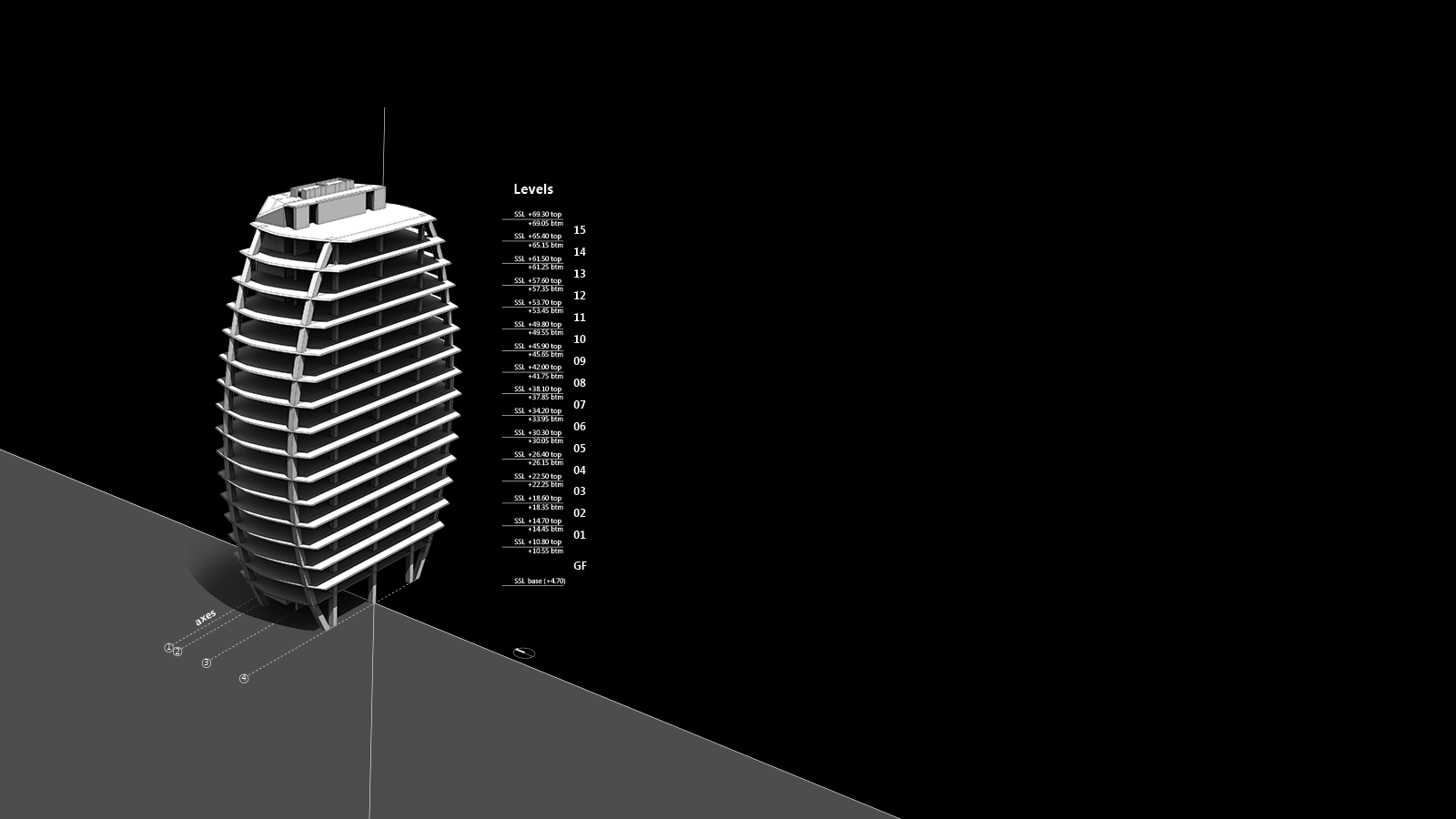

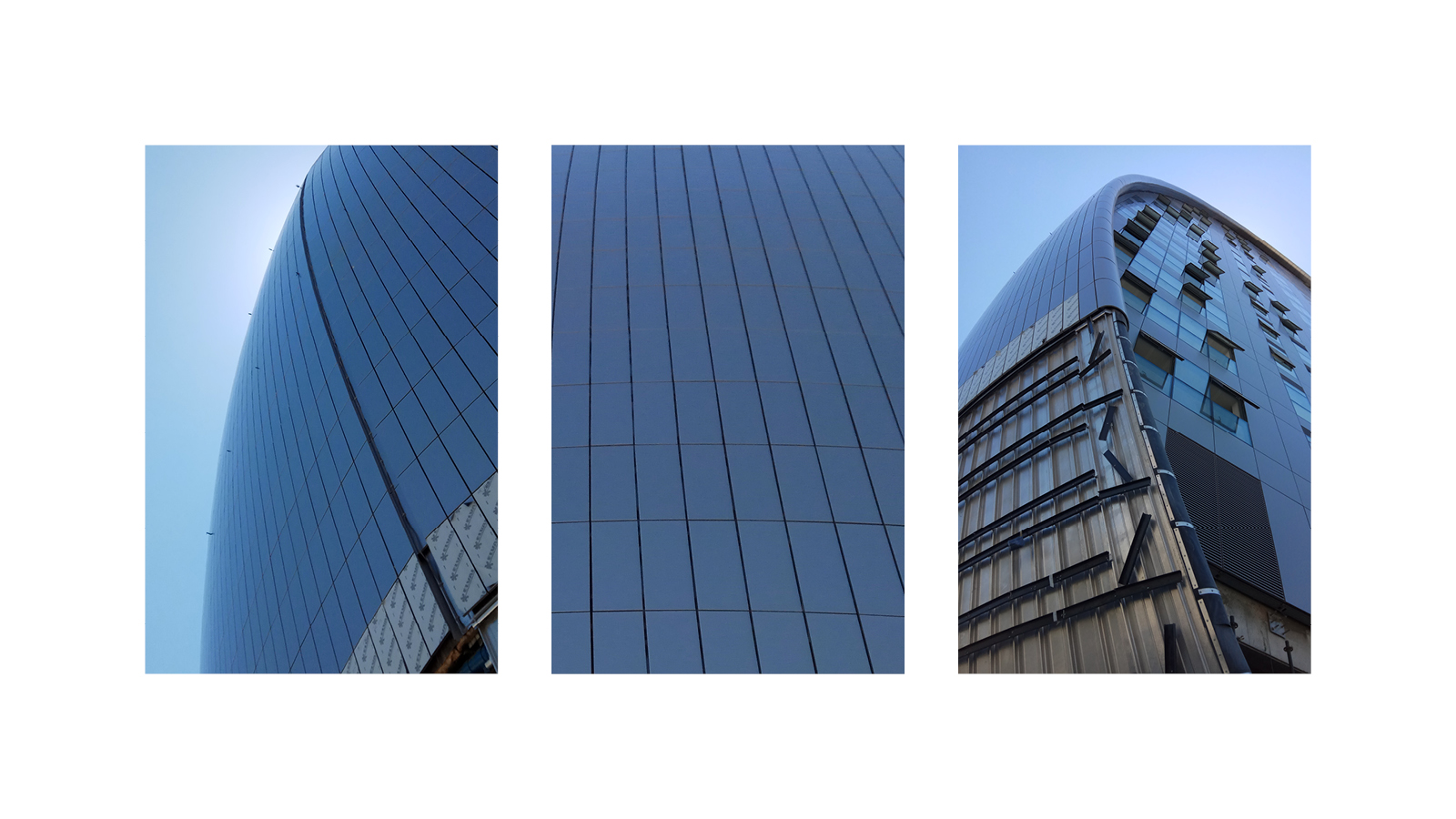

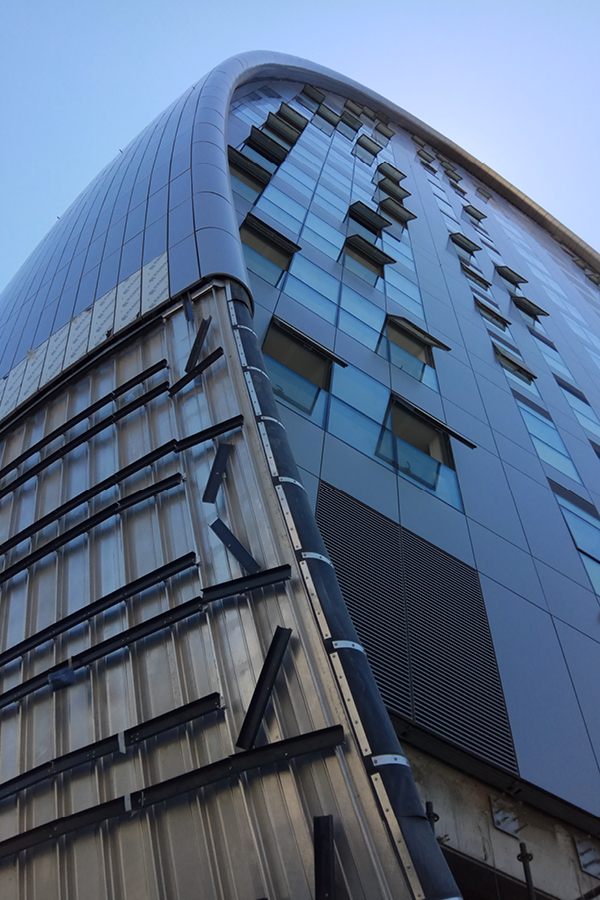

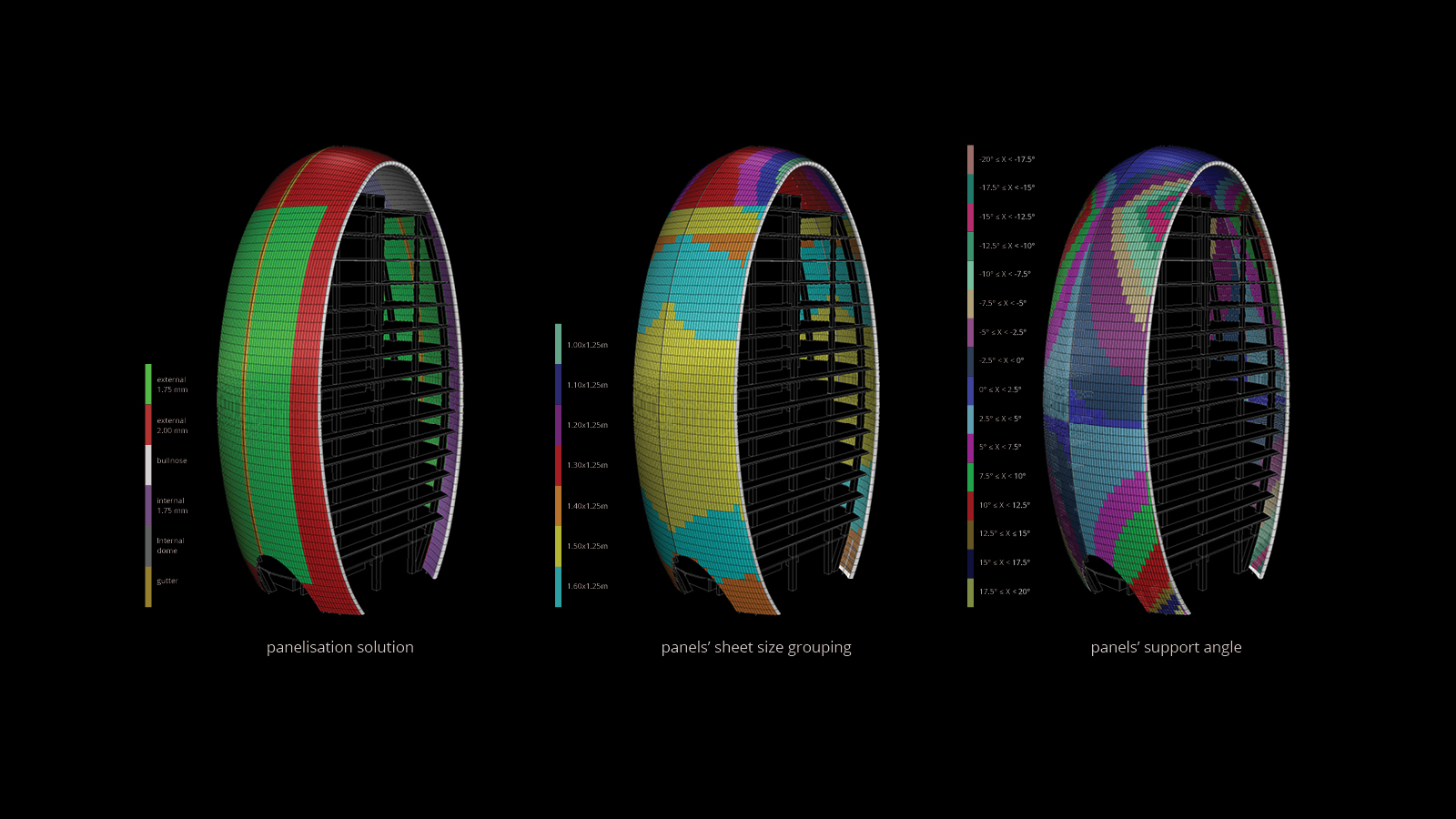

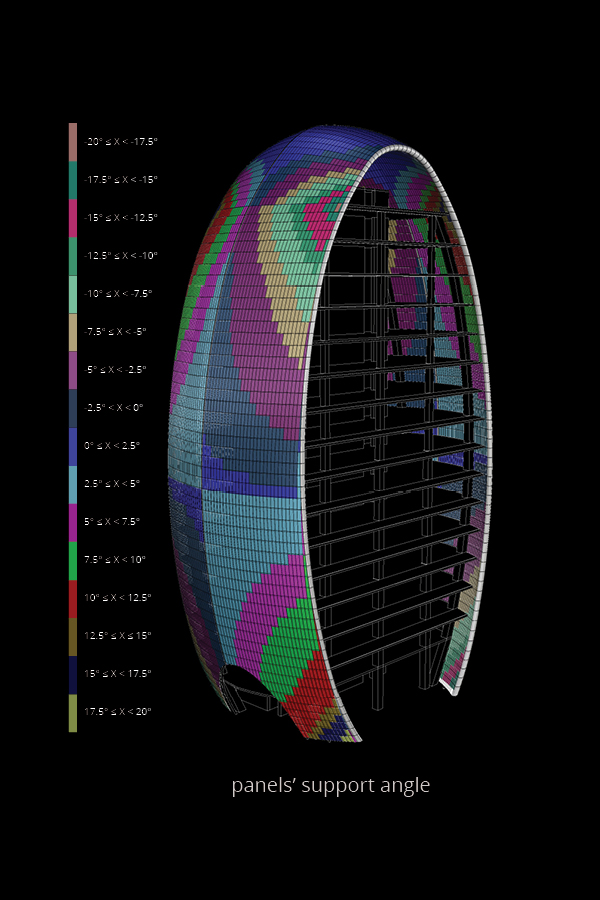

The Oval Tower is a doubly curved landmark building situated in the coastal area of Limassol, Cyprus. The Oval stands at 80m height and consists of 16 commercial floors. SEAMLEXITY took on a holistic BIM approach remodeling and rationalizing the complex geometry and designing the setting out process of the concrete frame and steel substructure as well as panelizing the doubly curved shell. Our team worked closely with the Architects, Engineers and Contractors in order to facilitate the construction of the Tower. Our services included BIM, parametric modelling, setting out management, geometry optimization, shell panelisation and fabrication documentation.
the Oval
Use
Office building
Year
2017
Location
Limassol, Cyprus
Contractor
Cybarco Limited
Concept Design
Atkins Limited
Architects
Atkins Limited and Armeftis & Associates
Structural Engineer
Hyperstatic Engineering Design
Electromechanical Engineer
Elemec & Yfantis Engineering
Environmental Study
Emfasis Limited
Sustainability Study
GBC Energy Engineering and Yfantis Engineering
Photographs
Charis Solomou
Figures
Seamlexity
